- Size: 0.2
- Place of Origin: Ningbo
- Brand Name: PULI
- Model Number: PL-V20000
- Weight: 62.000 kg
Features:

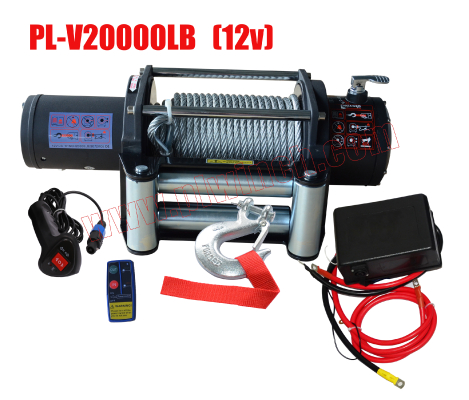

High performance 20000lb off road winch.
Heavy duty series wound motor gives high torque and fast line speed .
Sealed transmission system with extreme-duty water resistance.
Rugged and quiet planetary gears for maximum mechanical efficiency
High quality brake system automatically endures full load without slipping.
7.Brake outside the drum" allows rapid heat dispersion,ideally suited for heat sensitive synthetic rope.
.Free spooling cluth with up/down ring gear,very easy to operate.
Aluminum die-cast housing with steel drum construction,protect gear assembly from abrasion and wear.
Wireless remote control allows you to electrically control winch spool in /out or stopping from far distance.
00% testing before shipping.
Specification:
| Rated Line Pull: | 20000LB(9072kg) single-line |
| Motor: | 7.8hp/5.7kw 12V, Series Wound motor |
| Gear Train: | 3-stage planetary |
| Gear Reduction Ratio: | 265:1 |
| Clutch: | Up and down 90° |
| Cable | φ7/16”×92” (φ11mm×28m) |
| Drum Size: | φ3.5”×8.82”(φ89mm×224mm) |
| Overall Dimensions: | (L×W×H)22.3”×8.5”×9.7”(567×215×246mm) |
| Gross Weight: | 136lbs(62kg) |
| Duty Cycle: | Intermittently |
| Fairlead: | 4-way roller fairlead |
| Package: | 1pc/box, 600x380x245mm |
| Mounting Bolt Pattern: | 10”x4.5”(254mm x 114.3mm ) |
| Remote Control: | Included |
| Note | clutch style, brake system can be chosen, different cost |
