- Size: 0.02
- Place of Origin: Ningbo
- Brand Name: PULI

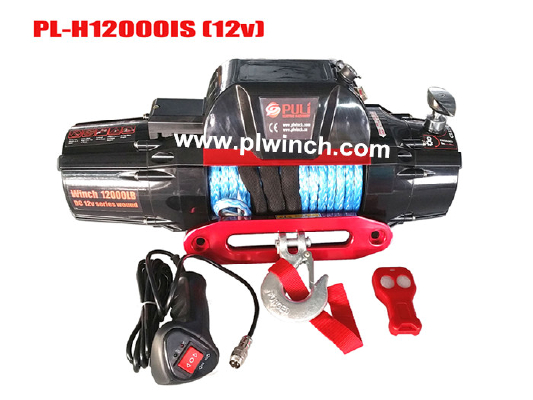

- Model Number: PL-H12000IS
- Weight: 25.500 kg
Specifications
Rated Line Pull: 12000LB(5448kg) single-line
Motor: 5.9hp/4.3kw 12V, series Motor
Gear Train: 3-stage planetary
Gear Reduction Ratio: 216:1,or 150:1
Clutch: rotating ring gear
Cable φ9.5mm×26m Synthetic rope
Drum Size: φ64mm×224mm
Overall Dimensions: (L×W×H) 557x165x240mm, alu. Die cast housings, ABS box
Gross Weight: 31.5kg (winch and rope weight 25.5kg)
Duty Cycle: Intermittently
Fairlead: Aluminium Hawse
Package: 1pc/box,(590×205×350mm)
Mounting Bolt Pattern: 254 x 114mm
Remote Control: Included
Note Usd6.5 less for 2x200A solenoid; Usd20 more for high class 500A solenoid
