- Size: 0.20
- Place of Origin: Ningbo
- Brand Name: PULI

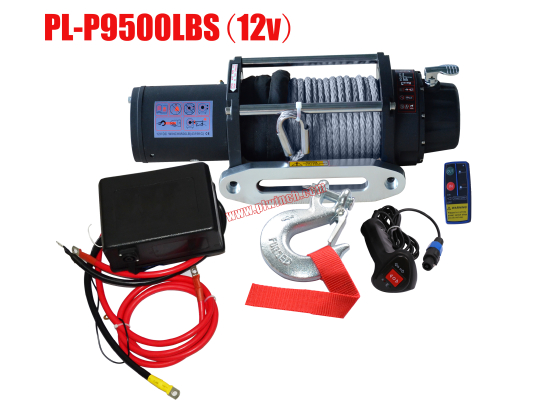

- Model Number: PL-P9500S
- Weight: 28.000 kg
Specifications
Rated Line Pull: 9500LB(4310kg) single-line
Motor: 6.0hp/4.4kw 12V, Series Wound motor
Gear Train: 3-stage planetary
Gear Reduction Ratio: 172.8:1 or 150:1
Clutch: Up and down 90°
Cable synthetic ropeφ3/8”×92” (φ9.5mm×27m)
Drum Size: φ2.51”×8.82”(φ64mm×224mm)
Overall Dimensions: (L×W×H)21.7”×6.3”×6.8”(552×160×172mm)
Gross Weight: 62lbs(28kg)
Duty Cycle: Intermittently
Fairlead: Aluminium Hawse
Package: 1pc/box, 600x343x255mm
Mounting Bolt Pattern: 10”x4.5”(254mm x 114.3mm )
Remote Control: Included
Note clutch style, solenoid, brake system can be chosen, different cost
